BTS - Base Transceiver Station

A Base Station sub-system (BSS) comprises a base station controller (BSC) and several base transceiver stations (BTS) , Each of which provide radio cell of one or more channels . Each BTS has atleast one radio channels to carry control signals in addition to traffic. The elements of BTS are Tower , GSM Antenna , PDH & SDH microwave , Cables , Rectifier , Generator, TRU (Transceiver unit) , Duplexer , and cabinet and shelter. Here is some BTS photos , can help you to understand configuration and set up of BTS.
Click on photos to enlarge

BTS configuration
BTS Set up photosbase transceiver station

BTS cabling

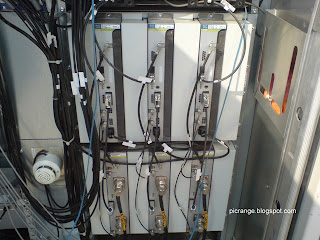

BTS installation
BTS installation and configuration

BTSBase transceiver station

BTS Transceiver unit
BTS configuration

BTS power set up
